破碎仓重新设计的同时也增大了其尺寸，即使是较大的浇口料也能轻松投妇入，因而 GDL 系列的适用范围更广泛。转子支撑在两个轴承上，同时其轴径按照******的转子宽度来设计，从而使其切碎块状物体成为可能。另外，阶梯型转子叶片设计使得任何时刻只有一片刀具在进行切割，从而增加切割扭矩。基于以上原因，GDL 系列的机器适用于切割致密材料和厚壁浇口。
The crushing chamber is redesigned and its size is increased at the same time. Even the larger gate material can be easily put into the woman, so the GDL series has a wider range of application. The rotor is supported on two bearings, and its diameter is designed to maximize the width of the rotor, making it possible to chop up chunks. In addition, the stepped rotor blade design allows only one cutter to be cutting at any one time, thus increasing cutting torque. For these reasons, the GDL series machines are suitable for cutting dense materials and thick-walled gates.
OUR CUTTER
我们的刀具

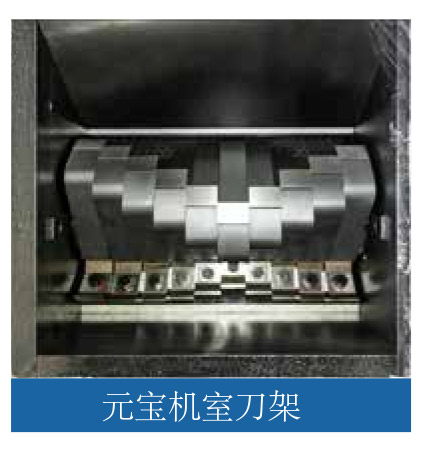

GDL 系列转子配有专门设计的刀具。转子刀具的特殊造型确保其在冲模后仍然保持固定的切割曲线和切害间隙。由于不需要再经过复杂的调整刀具过程，从而显著缩短了拆装刀具的停机时间。
GDL series rotors are equipped with specially designed cutting tools. The special shape of the rotor tool ensures that it maintains a fixed cutting curve and clearance after the die. As there is no need to go through the complicated tool adjustment process, the downtime of tool disassembly and assembly is significantly shortened.

|
|
